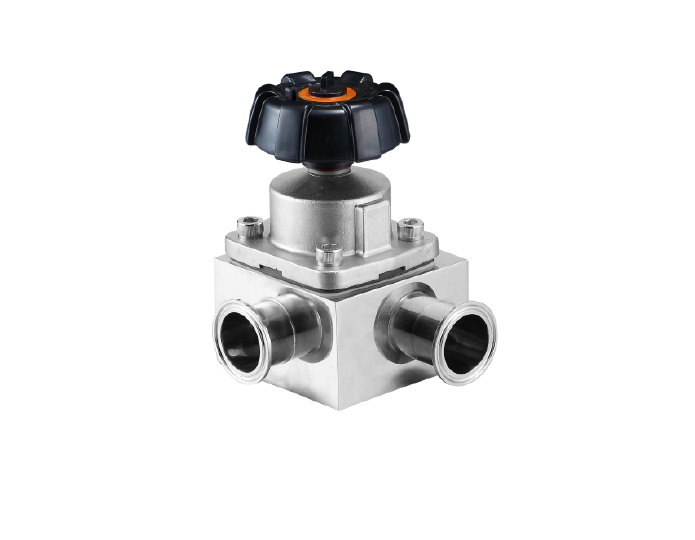

Quick-mounted three-way diaphragm valve
Quick-mounted three-way diaphragm valve
Manual or pneumatic operation, specifically for sanitary and aseptic processes in the pharmaceutical industry.
◆Specifications: 1"-4", DN25-DN100
◆ Pressure: 10bar (145PSI)
◆Material: ASTM316L, 1.4404, 1.4435 NB2 Fe<0.5%
◆Temperature: -20°C+150°C
◆Connection: clamp, welding, thread, 3A BPE DIN SMS IDF ISO
◆Valve structure: U-shaped three-way + sampling valve; U-shaped three-way
◆ Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Vitong)
◆ Certification: 3A-54-02/1580, PED97/23 EC, FDA177.2600
Online inquiry
Manual or pneumatic operation, specifically for sanitary and aseptic processes in the pharmaceutical industry.
◆Specifications: 1"-4", DN25-DN100
◆ Pressure: 10bar (145PSI)
◆Material: ASTM316L, 1.4404, 1.4435 NB2 Fe<0.5%
◆Temperature: -20°C+150°C
◆Connection: clamp, welding, thread, 3A BPE DIN SMS IDF ISO
◆Valve structure: U-shaped three-way + sampling valve; U-shaped three-way
◆ Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Vitong)
◆ Certification: 3A-54-02/1580, PED97/23 EC, FDA177.2600
