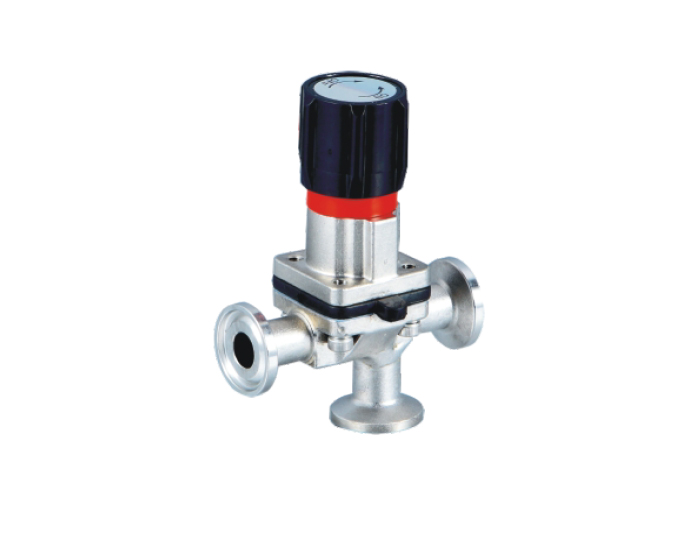

Connect to ensure that the liquid does not have a dead angle. The sealing material uses imported PTFE material as the diaphragm to meet the cleaning requirements. Valve with limit device
It is guaranteed that it will not damage the diaphragm due to excessive force when it is closed. It is a valve widely used in biopharmaceutical plants.
|
specification |
L |
HxY |
D1 |
V |
D2 |
D3 |
|
DN6 |
72 |
21X21 |
6 |
41 |
19 |
25.4 |
|
DN8 |
72 |
21X21 |
8 |
41 |
19 |
25.4 |
|
DN10 |
72 |
21X21 |
10 |
41 |
19 |
25.4 |
|
DN15 |
108 |
36X32 |
13 |
61 |
19 |
25.4 |
|
DN20 |
126 |
48X55 |
16 |
72 |
43.5 |
50.5 |
|
DN25 |
126 |
48X55 |
22 |
72 |
43.5 |
50.5 |
|
DN32 |
160 |
70X64 |
29 |
92 |
43.5 |
50.5 |
|
DN40 |
160 |
70X64 |
35 |
92 |
43.5 |
50.5 |
|
DN50 |
193 |
85X75 |
49 |
112 |
56.5 |
64 |
|
DN65 |
220 |
105X91 |
59 |
138 |
70.5 |
77.5 |
|
DN70 |
256 |
126X114 |
72 |
190 |
83.5 |
91 |
|
DN80 |
256 |
126X114 |
85 |
190 |
97 |
106 |
|
DN100 |
350 |
194X8 |
98 |
250 |
110 |
119 |
|
DN125 |
350 |
194X8 |
125 |
250 |
146 |
155 |
