Manual bottom diaphragm valve

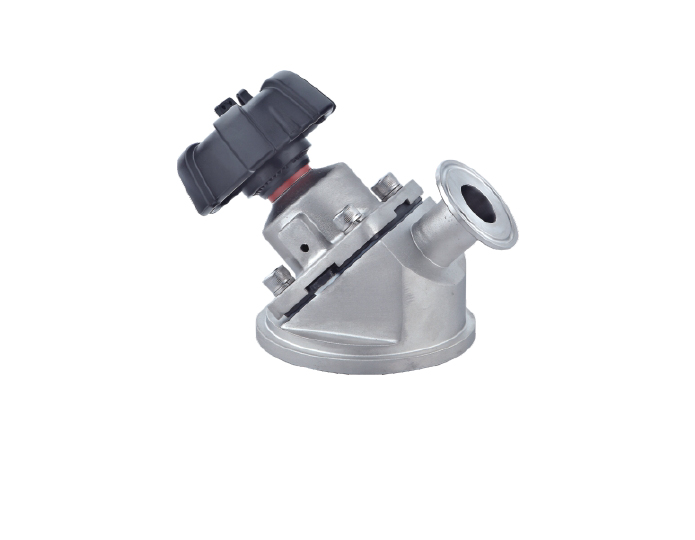

Manual tank bottom diaphragm valve
Manual tank bottom diaphragm valve for medium venting and discharge of pharmaceutical tank equipment.
◆Specifications: 3/4"-3, DN25-DN100
◆ Pressure: 10bar (145PSI)
◆Material: ASTM316L, 1.4404, 1.4435 NB2 Fe<0.5%
◆Temperature: -20°C+150°C
◆Connection: clamp, welding, thread, 3A BPE DIN SMS IDF ISO
◆Valve structure: U-shaped three-way + sampling valve; U-shaped three-way
◆ Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Vitong)
◆ Certification: 3A-54-02/1580, PED97/23 EC, FDA177.2600
Online inquiry
Manual tank bottom diaphragm valve for medium venting and discharge of pharmaceutical tank equipment.
◆Specifications: 3/4"-3, DN25-DN100
◆ Pressure: 10bar (145PSI)
◆Material: ASTM316L, 1.4404, 1.4435 NB2 Fe<0.5%
◆Temperature: -20°C+150°C
◆Connection: clamp, welding, thread, 3A BPE DIN SMS IDF ISO
◆Valve structure: U-shaped three-way + sampling valve; U-shaped three-way
◆ Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Vitong)
◆ Certification: 3A-54-02/1580, PED97/23 EC, FDA177.2600
