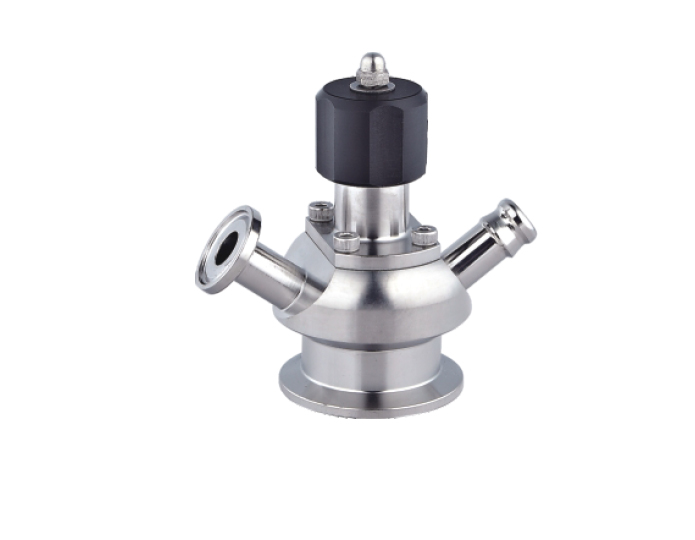

QQuick-mounted sanitary sampling valve
QQuick-mounted sanitary sampling valve
◆ The aseptic sampling valve is sterilized before and after each sampling.
◆ Open the valve: Sampling - Open the valve pneumatically.
◆Close the valve: Disinfection - shut off the valve to close the valve, keep the passage between the hoses open for disinfection. If steam is used, it is recommended to install a small pressure relief valve at the outlet.
◆Application: The valve is used in beer, milk, beverage, juice, pharmaceutical and other industries.
◆Connection method: clamp, welding
◆Valve body: AISI 316L (1.4404) ASME BPE 316L
◆ Diaphragm: EPDM PTFE
◆Maximum temperature: 150 ° C (PTFE)
◆ Pressure: 10bar
Online inquiry
◆ The aseptic sampling valve is sterilized before and after each sampling.
◆ Open the valve: Sampling - Open the valve pneumatically.
◆Close the valve: Disinfection - shut off the valve to close the valve, keep the passage between the hoses open for disinfection. If steam is used, it is recommended to install a small pressure relief valve at the outlet.
◆Application: The valve is used in beer, milk, beverage, juice, pharmaceutical and other industries.
◆Connection method: clamp, welding
◆Valve body: AISI 316L (1.4404) ASME BPE 316L
◆ Diaphragm: EPDM PTFE
◆Maximum temperature: 150 ° C (PTFE)
◆ Pressure: 10bar
