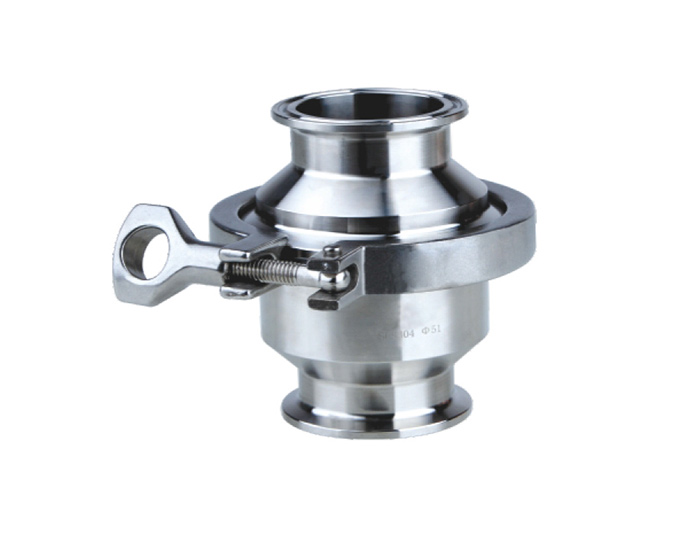

Check valve clamp
Specification: DN-25/1 "to DN-100/4"
◆ External Construction and Axis AISI 316L/304
◆ Spring: AISI 304
◆ Washers: EPDM according to FDA 117.2600
◆ Surface treatment: Ra ≤ 0.8 μ M
◆ Washers available in NBR, FPM (fluororubber) or PTFE, FDA117.2600 (option)
◆ Connection standards: welding, threading, clamps, DIN, SMS, RJT, IDF, ISO, 3A
Nominal pressure: 10 bar
◆ Opening pressure: 0.3 bar (DN-25), 0.2 bar (DN-32/40), 0 1 bar (DN-50/100)
◆ Working temperature: -10 ℃ to+130 ℃ (EBRM)
