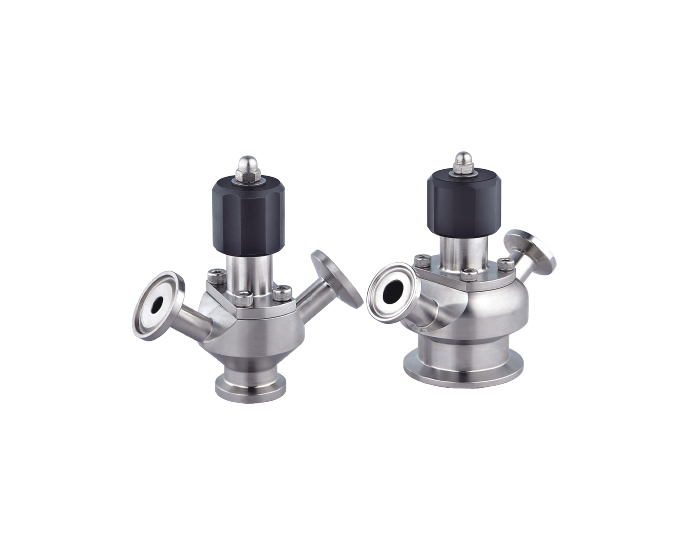

Sanitary sampling valve
Body connection: SAME tank flange, welding, quick loading
Material: Body: 316L Bonnet: 304 Diaphragm: PTFE
Pressure: maximum working pressure (10bar)
Temperature: Temperature range: 1 ° C - 150 ° C dry steam (2 bar): 125 ° C
sampling:
Open the valve and take a sample;
After sampling is completed, the valve is closed;
Clean the valve with steam. See "Sterilization"
Sterilization:
1. Connect the steam hose to the upper connecting pipe of the valve;
2. Open the steam source and let it flow through the valve for sterilization. At 121 ° C for 1 minute;
3. Turn off the steam source;
Online inquiry
Material: Body: 316L Bonnet: 304 Diaphragm: PTFE
Pressure: maximum working pressure (10bar)
Temperature: Temperature range: 1 ° C - 150 ° C dry steam (2 bar): 125 ° C
sampling:
Open the valve and take a sample;
After sampling is completed, the valve is closed;
Clean the valve with steam. See "Sterilization"
Sterilization:
1. Connect the steam hose to the upper connecting pipe of the valve;
2. Open the steam source and let it flow through the valve for sterilization. At 121 ° C for 1 minute;
3. Turn off the steam source;
4. Remove the steam hose and install a sterile rubber stopper or sterile mask onto the upper connecting tube.
